The FGS-VC Series Motorized Force Test Stands are designed to provide accurate and repeatable results for tension, compression, break and cycle performance tests in various applications . The large measurement area plus tall 15.75˝ (400 mm) travel distance allow large, unique parts to be tested. A precise and consistent 0.40-15.75”/min (10-400mm/min) adjustable speed provides for slow tests or quick cycle load testing. The FGS-VC’s are flexible as they can be operated by the keypad or through a PC via the FGT-VC software which includes data collection, graphing and statistical analysis.

Shimpo's advanced motorized test stands allow the user to obtain the most accurate, repeatable results available in the market today. All steel construction makes them remarkably rugged, while programming and cycling capabilities enable them to be highly intelligent. All stands have the ability to interface with our top quality force gauges, providing complete force measurement systems for the most precise testing applications.

Because speed, distance, and time are controlled by the user in either a vertical or horizontal model, Shimpo's motorized stands can be configured for any application.

Shimpo's advanced motorized test stands allow the user to obtain the most accurate, repeatable results available in the market today. All steel construction makes them remarkably rugged, while programming and cycling capabilities enable them to be highly intelligent. All stands have the ability to interface with our top quality force gauges, providing complete force measurement systems for the most precise testing applications.

Because speed, distance, and time are controlled by the user in either a vertical or horizontal model, our motorized stands can be configured for any application.

The Series FGS-100E vertical, motorized force test stands combined with the SHIMPO line of superior quality force gauges create a complete force measurement system capable of handling the most precise testing applications. With four modes of operation (manual, jog, single cycle, continuous) various single tests or repetitive tests can be achieved and selected with the push of a button.

All steel construction makes the FGS-100E remarkably rugged, providing the reliability to tackle a multitude of applications.

A highly accurate turn-wheel gives a precise 0.1" travel per revolution. In addition, its rugged construction provides repeatable and reliable testing, time after time. The FGS-1000H features fully adjustable height ranges, customizable lengths (for different sample sizes) and the option to add a length/height meter.

• A good alternative for utilizing existing force gauges, grips attachments and accessories
• Ability to mount the Shimpo JAVELIN, FGV-1000HX (1000 lbs, 2500N, 500KG) capacity digital force gauge
• Designed for convenient testing in both tension and compression

Shimpo's manual test stands offer the ability of obtaining accurate, consistent results without the high cost of a motorized system. Hand wheel stands are excellent for applications when more precise control is needed.

Shimpo's manual test stands offer the ability of obtaining accurate, consistent results without the high cost of a motorized system. Lever operated stands are ideal for rapid testing applications

FGS-50S (50 lb capacity lever operated)

Shimpo's manual test stands offer the ability of obtaining accurate, consistent results without the high cost of a motorized system. Lever operated stands are ideal for rapid testing applications

FGV-XY series gauges from SHIMPO combine the extensive features of the SHIMPO DFS series with the rugged, ergonomic and compact design of the original DART series to provide a complete force testing instrument for a variety of industries. With free software and toriemon USB, the FGV-XY provides a total package for force testing up to 200lbs.

• 1000 Hz Sample Rate
• High Accuracy (0.2%)
• USB/RS-232/Analog Outputs
• 0.5 Lb to 200 Lb Capacities
• 200% Overload Capacity

With a variable display update rate and the accuracy the FGV-XY series, these gauges feature unique 180 degree flip displays, permitting the user to read the display right-side up. Additional enhancements are; dual direction keypad, selectable force direction indication, and selectable power on/off settings. FGE-X permits accurate measurement and display of compression and tension forces up to 100 pounds. (up to 1,000 lbs using the FGV-1000HX)

• 1000 Hz update rate
• Highly accurate (+/- 0.2% f.s.)
• Overload capacity: 200% F.S.
• Measures and records compression and tension tests

The Series FGV-HX Digital Force Gauges offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

• 500 lb or 1000 lb capacity
• Outstanding accuracy (±0.2% F.S.)
• Overload capacity: 150% F.S.
• USB, RS232C and analog outputs
• Measures both compression and tension forces

The Series FGE-HX Digital Force Gauges offer an enhanced heavy-duty housing allowing them to be utilized in high capacity tension and compression applications. These instruments are utilized in a variety of applications such as, incoming quality inspection, finished goods testing, R&D or almost any portable or force stand testing requirement.

• 200 lb, 500 lb, or 1000 lb capacity
• Outstanding accuracy (±0.2% F.S.)
• Overload capacity: 150% F.S.
• no data output
• Measures both compression and tension forces

Incredibly durable and user-friendly, our economical mechanical gauges are excellent for repetitive testing in assembly line or quality control lab applications. The peak mode features an easy push-button reset; this is especially helpful for doing repetitive testing in an assembly line or quality control lab. The real time mode allows you to see force changes as they occur.

• Outstanding accuracy (±0.2% FS)
• Precision gauge movement
• Exceptionally rugged and dependable
• Measure both tension and compression forces
• Overload protected to 165 pounds

FGS-Length-L
Permits measurement of distance moved when using Shimpo's lever test stands (FGS-5S, FGS-50L). Contact us for more information!

UNI-PLATE
Allows other manufacturers' force gauges to be mounted on Shimpo test stands (contact distributor or Shimpo for details). Contact us for more information!

FG-HORIZ-ADAP
Permits the mounting of attachments to Shimpo's horizontal test stands (FGS-50PXL, FGS-50PXH). Contact us for more information!

FG-HANDLE
Fits models FGE, FGV and DFS; 100 lb (50 kg) capacity. Contact us for more information!

MFP-HANDLE
Fits MF models; 100 lb (50 kg) capacity. Contact us for more information!

FG-09V120
110 volt AC adapter/charger used with all of Shimpo's electronic gauges. Contact us for more information!

FG-09V120UC
100 - 240 volt AC universal adapter/charger used with all of Shimpo's electronic gauges. Contact us for more information!

FGV-FGS250P
Allows communication between the FGV-X and the FGS-250PV Flex Stand. Contact us for more information!

FGS250PV-RS232
Cable that allows interfacing between the FGS-250PV Flex Stand and a PC / DATA. Contact us for more information!

FGV-RS232
DFS-RS232
Permits communication between the force gauge and a PC. Contact us for more information!

FGV-Analog
DFS-Analog
Facilitates an analog output for recording purposes (amplitude of signal is ±1VDC). Contact us for more information!
DFS-Comparator
Enables the triggering of an alarm when limits are programmed on the DFS gauge ("Hi, Go and Lo" outputs). Contact us for more information!
DFS-Digimatic
Allows data transfer to a Mitutoyo data collector. Contact us for more information!

DFS-CTRL-BASIC
Controls test stand with Hi-Low limits on DFS. Contact us for more information!

DFS-CTRL-DELUXE
Controls test stand with Hi-Low limits on DFS, with data output. Contact us for more information!

DIGITORQ (Free) Software application for the TNP and TRC Torque Meter is an add-in tool for Microsoft® Excel, which makes downloading torque meter readings easy and affordable.

TORIEMON-USB and TORIEMON-X (Free) Software application for FGV-XY Force Gauges is an add-in tool for Microsoft® Excel, which makes downloading force gauge readings easy and affordable.

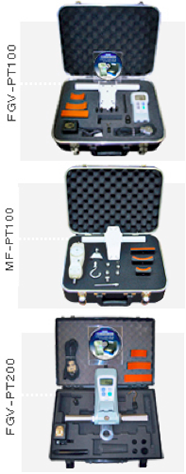

Lightweight, rugged and attractive, these kits are great for Isokinetic testing and job task analysis. Available in two basic models, these PT gauges with ergonomically crafted mechanical and digital designs are easy to operate. In addition, digital units (FGV-PT series kits) are equipped with free Toriemon Software for Force data collection.

Ideal for A.D.A. Compliance, workplace design and ergonomic studies. PT kits come complete with either Mechanical or Digital force gauges, for displaying peak compression, tension and real time forces.

MF(MF-PT100/MF-PT50KG)

• Large dial indicator in 0-100 LBS or 0-50 KG LBS or 0-50 KG
• No Batteries required
• All metal construction
• Peak hold
• Extra hand grip provided

DART (FGE-PT100 / FGV-PT100) {0-100 lb, 50kg, 500N}
JAVELIN (FGE-PT200 / FGV-PT200, & FGE-PT500 / FGV-PT500)
{0-200 lb, 100kg, 1000N} & {0-500 lb, 250kg, 2500N}

• Large, LCD display
• Peak hold
• Reversible Display and keypad
• Variable units of measure
• Fast Update Rate
• All metal construction

The TNP torque meter is a precision instrument that measures OPEN and CLOSE torque values for various applications. As a cap torque analyzer, the TNP repeatedly determines bottle closure and breakaway torque. It has a wide memory capacity capable of storing 1,000 data points in addition to Average, Maximum and Minimum values. A HI-LO comparator feature can be utilized for large batch testing to ensure overall product quality.

• USB capable for computer testing
• High Accuracy ± 0.5% F.S.
• Wide torque range: 0.5Nm, 2Nm, 5Nm and 10Nm models
• Large Digital Display
• Variable units of measure: TNP-0.5: Ncm, mNm, gcm, Lbin TNP-2, 5, 10: Nm, Ncm, Kgcm, Lbin

The TRC torque checker is a user friendly instrument for calibrating or measuring torque values. A single button process does it all. Zero, Test, Store, and repeat. In addition to Average, Maximum, Minimum, and Peak values, the TRC features Red/Green/Red LED’s (HI-GO-LO) and audible alarm. It’s wide 3,000 data points storage capacity makes large batch testing possible, insuring overall product quality.

• USB capable for easy PC/Software interface
• High Accuracy: ± 0.5% F.S. ± 1 digit to ensure precise results
• Wide torque range: 2Nm, 5Nm and 10Nm models to meet a wide variety of applications
• Memory: One touch operation, stores up to 3000 measurements & resets for next test
• Variable units of measure: Displays Torque values in, Lbin, Kgcm, Nm, Ncm
• Can be used to test motorized tools

The TT Digital Torque Tool Tester is a simple operation test instrument for quickly checking torque tool performance. The TT Series provides exceptional accuracy for measuring torque on various products including torque wrenches, manual screwdrivers, electric screwdrivers, pneumatic screwdrivers and other torque controlled power tools.

• RS232 and USB capable for easy PC/Software interface
• High Accuracy: +/- 0.5% of reading
• 120% of Full Scale
• Seven units of measure avalible:N-mm, N-cm, N-m, in-lb, ft-lb, kg-cm, kg-m (depending on range)
• Battery life: 12 hours idle or 4 hours of continuous use
• Can be used to test motorized tools
