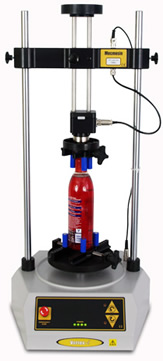

Optimized for measuring static and rotary torque up to 10N.m, the versatile Vortex-i is ideal for running sophisticated routines for more demanding product and material tests. With our top-of-the-range Vortex-i systems you gain full programmable control and comprehensive evaluation tools for performing a vast array of torque tests.

• Maximum load of 10N.m
• Intelligent Torque Loadcell capacities: 0.3N.m, 1.5N.m, 3N.m, 6N.m, 10N.m (2.7lbf.in, 13lbf.in, 26lbf.in, 52lbf.in, 90lbf.in)
• Maximum sample height of 448mm (17.6") *
• Width between columns 280mm (11")
• Capacity of upper mounting table from 10 to 78mm (0.39 - 3.1")
• Capacity of lower mounting table from 10 to 190mm (0.39 - 7.48")
• Load accuracy is ±0.5% of full scale
• Load resolution is 1:6500
• Speed range of 0.1 - 20 revs/min (clockwise and counter-clockwise)
• Maximum displacement of 2500 revs
• 5kg top loading capability

The Vortex-d range is a basic motorized torque test system for measuring static and rotary torque up to 10N.m, and combines with Mecmesin's universal display to ensure repeatable, accurate results. Though simple to operate, the Vortex-d range benefits from many advanced test features to meet common testing requirements.

• Maximum load of 10N.m
• Transducer capacities: 1.5N.m, 6N.m, 10N.m (13lbf.in, 52lbf.in, 90lbf.in)
• Maximum sample height of 450mm (17.7") *
• Width between columns of 280mm (11")
• Capacity of upper mounting table from 8 to 55mm (0.31 - 2.16")
• Capacity of lower mounting table from 10 to 190mm (0.39 - 7.48")
• Load accuracy is ±0.5% of full scale
• Display resolution is 1:5000
• Speed range of 0.1 - 20 revs/min (clockwise and counter-clockwise)
• Maximum displacement of 2500 revs
• 5kg top loading capability

The Advanced Force & Torque Indicator works in conjunction with Mecmesin sensors and can be used handheld or fixed to a manual or motorized test stand for optimum testing performance.

With easy interchangeability of sensors and automatic recognition, this unit enables much greater test versatility than a standard instrument can provide.

• Excellent accuracy ±0.1% of full scale
• Measure torque, tension or compression
• Automatic recognition of sensors
• Single-click conversion of units
• Data output - RS232, digimatic or analogue
• Overload warning, with trend bar
• Diagnostic check of loadcell

The Tornado is an extremely versatile instrument for measuring low-level torques up to 10N.m. It provides practical operation, combined with advanced features for testing clockwise and counter-clockwise torques easily and accurately.

• Clockwise and counter-clockwise measurement
• Capacities: 1.5, 3, 6 & 10N.m (13, 26, 50 & 90lbf.in)
• Container diameter - 1.5 & 3N.m models from 10 to 78mm (0.4" - 3.1")
• Container diameter - 6 - 10N.m models from 10 to 190mm (0.4" - 7.5")
• Load accuracy is ±0.5% of full scale
• 5000Hz sampling rate

For basic, low-level torque tests up to 6N.m, the Orbis provides a reliable and accurate solution. The unit boasts a number of useful features designed to maximize usability, making clockwise and counter-clockwise measurements very easy and quick tasks to undertake.

• Clockwise and counter-clockwise measurement
• Capacity of 6N.m (50lbf.in)
• Container diameter from 10 to 190mm (0.4" - 7.5")
• Load accuracy is ±0.5% of full scale
• 5000Hz sampling rate

The CRC tester from Mecmesin, is a highly accurate tester, capable of measuring both the security and accessibility of child-resistant closures. The 'push' and 'twist' action used to open a CRC closure is shown clearly on two dedicated displays for easy identification of both force and torque values.

• Load capacity of 500N (110lbf)
• Torque capacity of 10N.m (90lbf.in)
• Container diameter from 10 to 190mm (0.39" - 7.5")
• Load accuracy is ±1% of full scale
• 5000Hz sampling rate

The Torque Wrench Calibrator combines a universal display, Mecmesin's AFTI, with a dedicated transducer to assess the torque applied by 'click action', 'break back' or dial indicator torque wrenches up to 1000N.m.

• Clockwise and counter-clockwise measurement
• Six capacities from 15N.m to 1000N.m (11lbf.ft to 720lbf.ft)
• Accuracy, ±0.5% of full scale
• Not for testing powered tools

Static Torque Sensors are used in applications where in-line torque measurements are required and angular motion is limited. These sensors can be mounted to a bench or integrated into a complete test rig.

• Peak hold of maximum load at fast rate 5000Hz when used with AFTI Display or Advanced Force Gauge
• Clockwise and counter-clockwise torque
• Accuracy ±0.5% of full scale
• Overload protection feature

Our range of static socket extensions are ideal for low capacity applications, where space is limited. Supplied with male/female square drives for easy fitting of drivers.

• Peak hold of maximum load at fast rate 5000Hz when used with AFTI Display and Advanced Force Gauge
• Clockwise and counter-clockwise torque
• Accuracy ±0.5% of full scale
• Overload protection feature

Rotary torque transducers are used for tests where the transducer must rotate and is ideal for dynamic torque applications, which require multiple revolutions.

• Peak hold of maximum load at fast rate 5000Hz when used with AFTI Display or Advanced Force Gauge
• Clockwise and counter-clockwise torque
• Accuracy ±1% of full scale
• Maximum 5000 r.p.m.
• Overload protection feature
• Rotary torque/angle sensors also available

Static torque screwdrivers are ideal for low capacity torque applications.They are an accurate and efficient means of tightening and untightening screw type fasteners, however they are not suitable for applications requiring multiple rotations of the sensor (please see Rotary Torque Transducers).

• Peak hold of maximum load at fast rate 5000Hz when used with AFTI Display or Advanced Force Gauge
• Clockwise andcounter-clockwise torque
• Accuracy ±0.5% of full scale
• Removable 3 jaw chuck
• Flat sides for easily mounting to a fixture
• Overload protection feature

Premium torque testing software that works exclusively with Vortex-i systems.

• Create fully-customisable test programs
• From simple, routine tests on the factory floor to sophisticated test routines in the laboratory
• Comprehensive selection of evaluation tools
• Available in multiple languages

Mecmesin's easy-to-use data acquisition and plotting software is compatible with many torque testing products.

• Easily acquire test data from your Mecmesin test product
• Perform assessments using a selection of diagnostic tools
• Available in multiple languages
