Digital Force Gauges
afg Advanced Force Gauge (AFG)- high performance digital force gauge, the AFG provides the best accuracy and performance of any digital force gauge.
  • Force and torque measurement
  • Advanced testing options
  • Memory Function
  • Intuitive Keypad
  • Capacities from 2.5N to 2500N



Basic Force Gauge (BFG)- intermediate digital force gauge that enables accurate testing of elementary tension and compression applications.
  • Force Measurement
  • Easy to use
  • Sturdy Metal Housing
  • Affordable
  • Capacities from 10N to 2500N
CFG Compact Force Gauge+ (CFG+)- a basic gauge for quick and simple tests
  • Force Measurement
  • Very simple functions
  • Composite plasic housing
  • Budget-priced
  • Capacities from 50N to 500N
  • RS232 Compatible
Analog Gagues
LCanalog FD and DT Series basic low-cost Mechanical Gauge
  • Push/Pull of Push only tests
  • Low cost
  • Dual Units (metric and English)
  • Capacities from 1000gf to 30kgf (2lbf to 60lbf)
gram gauge DGD Series basic low-cost Mechanical Gauge
  • Clockwise/counter-clockwise action
  • Low Cost
  • Peak Hold
  • Capacities from 5gf to 1000gf



MultiTest-xt Series

multitest1xt

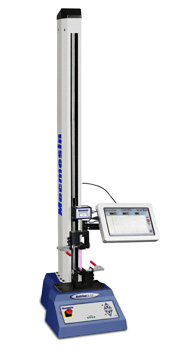

MultiTest-xt (1kN)

The MultiTest-xt Series provides a powerful and comprehensive testing system for force measurements up to 50kN. Tension and compression tests can be performed at the push of a button. With an easy-to-use touch screen console, the MultiTest-xt Series offers an option for testing in environments where the use of a computer is not always suitable. With full programming capability and a large selection of analysis options, the MultiTest-xt Series offers unparalleled multi-step tests in tension, compression, flexure, tear, stiffness and friction. All MultiTest-xt Series testers have a load measurement control resolution of either ±0.1% or ±0.2% and a positional accuracy of ±0.01mm (±0.0004in).



MultiTest 0.5-xt 1-xt 2.5-xt 5-xt 10-xt 25-xt 50-xt
Test Frame
Rated Capacity (N) 500 1000 2500 5000 10,000 25,000 50,000
Rated Capacity (kgf) 50 100 250 500 1,000 2,500 5,000
Rated Capacity (lbf) 110 225 550 1,100 2,200 5,500 11,000
Number of Ballscrews one one one one two two two
Columns Spacing - - - - 400mm (15.7in) 400mm (15.7in) 420mm (16.5in)
Speed Range mm/min 1-1000 1-1000 1-1000 1-500 1-1000 1-1000 1-400
Speed Range in/min 0.04-39.4 0.04-39.4 0.04-39.4 0.04-20 0.04-39.4 0.04-39.4 0.04-15
Crosshead Travel*  1200mm (47.3in) 1000mm (39.4in) 500mm (19.7in) 590mm (23.2in) 960mm (37.8in) 950mm (37.4in) 1100 (43.3in)
          *measured w/out load cell or grips



mutitest2.5xt

MultiTest 2.5-xt (2.5kN)

mutitest5xt

MultiTest 5-xt (5kN)

mutitest10xt

MultiTest 10-xt (10kN)

multitest25xt

MultiTest 25-xt (25kN)

mutitest50xt

MultiTest 50-xt (50kN)

MultiTest-i Series

multitest1i



MultiTest 1-i (1kN)

The MultiTest-i Series provides a powerful and comprehensive testing system for force measurements up to 50kN. With full programming capability and a large selection of analysis options, through the power of Emperor™ software, the MultiTest-i Series offers unparalleled multi-step tests in tension, compression, flexure, tear, stiffness and friction. All MultiTest-i Series testers have a load measurement control resolution of either ±0.1% or ±0.2% and a positional accuracy of ±0.01mm (±0.0004in). Emperor™ software, and rs-232 to USB adapter are included.



MultiTest 0.5-i 1-i 2.5-i 5-i 10-i 25-i 50-i
Test Frame
Rated Capacity (N) 500 1000 2500 5000 10,000 25,000 50,000
Rated Capacity (kgf) 50 100 250 500 1,000 2,500 5,000
Rated Capacity (lbf) 110 225 550 1,100 2,200 5,500 11,000
Number of Ballscrews one one one one two two two
Columns Spacing - - - - 400mm (15.7in) 400mm (15.7in) 420mm (16.5in)
Speed Range mm/min 1-1000 1-1000 1-1000 1-500 1-1000 1-1000 1-400
Speed Range in/min 0.04-39.5 0.04-39.5 0.04-39.5 0.04-20 0.04-39.4 0.04-39.5 0.04-15
Crosshead Travel*  1200mm (47.3in) 1000mm (39.4in) 500mm (19.7in) 590mm (23.2in) 960mm (37.8in) 950mm (37.4in) 1100 (43.3in)
          *measured w/out load cell or grips

Note: We have calibration equipment for Mecmesin's MultiTest-i Series load cells and can calibrate to factory specifications.



multitest2.5i

MultiTest 2.5-i (2.5kN)



MTi5

MultiTest 5-i (5kN)





MTi10

MultiTest 10-i (10kN)

Mti25

MultiTest 25-i (25kN)

50i

MultiTest 50-i (50kN)

MultiTest-d Series

MTd1MultiTest 1-d (1kN)

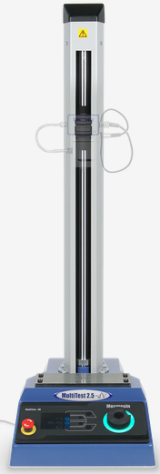

MTd2.5MultiTest 2.5-d (2.5kN)

The MultiTest -d has been designed as the ideal intermediate level motorized test stand for the most popular tensile and compression applications. Simple operation and rugged construction make it ideal for production environments and reseach and development laboratories.

Combined with a Mecmesin force gauge and accessories, the MultiTest-d is an affordable solution for testing (crimps, plastics, textiles, wire, and a wide range of lower to mid-range force applications). When used the AFG/AFTI Series gauges, a high level of test stand control is available, including stop or return on: force limit, break, or rupture.

MultiTest-d test stands are equipped with precise and accurate digital speed control, a large and easy to read LCD screen, and 3 test modes for maximum versatility and flexibility.

Model MutiTest 1-d MultiTest 2.5-d
Maximum Load (N) 1000 2500
Maximum Load (kgf) 100 250
Maximum Load (lbf) 220 550
Number of Ballscrews 1 1
Speed Range mm/min 1-1000 1-750
Speed Range in/min 0.04-40 0.04-30
Crosshead Travel* 500mm (19.7in) 330mm (13.0in)
Maximum Headroom* 530mm (20.9in) 350mm (13.8in)
    *measured w/ force gauge and short extention rod fitted

Common Specifications:

  • Speed unit: mm/min and inches/min
  • Speed resolution: 1mm/min or 0.05 inches/min
  • Displacement unit: mm and inches
  • Displacement resolution: 0.01mm or 0.0004 inches
  • Operating modes: Manual, Single Cycle, Continuous Cycle
  • Digital display of speed/ displacement: on LCD screen
  • Direction of travel indicated on stand: on LCD screen
  • Reverse on alarm point: Yes, with appropriate force gauge and cable
  • Reverse on sample break: Yes, with appropriate force gauge and cable

Emperor Lite™ Included!



MTd Package MultiTest-d Package

Combining the MultiTest-d, Advanced Force Gauge and Emperor Lite software gives you a highly beneficial complete package for accurately testing and evaluating your products performance at an affordable price.

What you get:

  • MultiTest-d (avaliable in 1kN or 2.5kN)
  •  Advanced Force Gauge (AFG)
  • Emperor Lite Software
Adapters and Brackets
dovetail Dovetail Bracket

The Dovetail Bracket is used for mounting Mecmesin Advanced (AFG) and Basic (BFG) force gauges to the crosshead of manual and motorised test stands.  It comes complete with socket-head fixing screws 10/32UNF by 5/8" long.  It allows the operator to precisely align the force gauge 'left-to-right' on the test stand, ensuring that forces are applied perpendicular to the loadcell for optimum accuracy.

Loadcells
JSBL Junior S-Beam Loadcells

Combining accuracy and size, Junior S-Beam loadcells are ideal for tension and compression applications where space is extremely limited. Dedicated fixtures can be fitted via threaded holes.

• Miniature design
• Peak hold of maximum reading at fast rate 5000Hz when used with AFTI Display and Advanced Force Gauge
• Tension and compression testing
• Accuracy ±0.25% of full scale
• Resolution 1:5000
• Overload protection feature
• Cable length 1.5m as standard

MBL

Miniature Button Loadcell

Ideal for compression only applications that require a compact design. Mecmesin 'SMART' miniature and sub-miniature loadcells are designed to fit into places other loadcells cannot.

• Peak hold of maximum reading at fast rate 5000Hz when used with AFTI Display and Advanced Force Gauge
• Compression only
• Accuracy ±1% of full scale
• Resolution 1:5000
• Overload protection feature
• Cable length 1.5m as standard

SBL S-Beam loadcells *

'SMART' S-Beam loadcells provide a versatile solution to general force measurement applications where space is not restricted. Dedicated fixtures can be fitted via threaded holes.

• Peak hold of maximum reading at fast rate 5000Hz when used with AFTI Display and Advanced Force Gauge
• Tension and compression testing
• Accuracy ±0.25% of full scale
• Resolution 1:5000
• Overload protection feature
• Cable length 1.5m as standard

Specialized Loadcells
PS Pinch Sensor *

The pinch sensor is ideal for obtaining a quantitative measure of finger strength for rehabilitation and research purposes.Within the automotive industry, closing forces can be tested to comply with vehicle safety standards for;

  • Automatic windows
  • Electronically operated doors
  • Sunroofs
HG Hand Gripper *

The hand gripper enables force measurement of hand exertion to assess;

  • Rehabilitation from injury
  • Occupational health assessment
  • Disabilities
  • Medical & clinical research
  • Sports science
PFA Pedal Force Accelerator *

Mecmesin's pedal force sensor is designed to measure the forces required to operate brake, accelerator and clutch pedals.

  • Lightweight and compact
  • Sensor mounts directly onto the pedal
  • Non-slip surface to ensure consistent force is applied
DL Donut Loadcell *

The donut sensor, otherwise known as a thru-hole loadcell, is designed for applications where the load or force component needs to pass through the centre of the loadcell.

  • Size, made-to-order
  • High accuracy
  • Tension and compression
*These Sensors require special calibration. We calibrate all Mecmesin sensors
Interface Cables
cables Mecmesin has a wide range of interface cables for downloading data from a Mecmesin test stand, force gauge or digital torque tester to a PC or other device for further analysis. Please Call us at 262-968-4950 or Toll Free at 800-657-0798 for information.
Software
emperor1 Emperor™ (Force)

Emperor works exclusively in combination with Mecmesin's top-of-the-range MultiTest-i force testing systems. From simple routine tests to sophisticated multi-stage tension and compression procedures and analysis, quality professionals are guaranteed the ultimate in flexibility, accuracy and consistency.

• Build your own test program
• Gain accurate test data
• Evaluate results in-depth
• Create test reports

Emperor2 Emperor Lite™ (Force)

Emperor Lite™ provides a user-friendly means to fully assess and highlight critical points of a samples performance for every test measurement.  It offers data acquisition and plotting for tests where full computer control and analysis are not necessary but where you need more than a measurement value.

  • Acquire test data
  • View data plotted graphically on a PC screen
  • Use simple diagnostic tools
