Shimadzu Universal Testing Machines
agsx AGS-X

The AGS-X is the descendent to the AGS-J. The AGS-X is a fine tester for Rubber, Plastic, and Film industries. It allows for efficient, powerful tensile and compression tests and also can perform bending tests of thermostatic resin, peeling testing and the plastic 3 point bending test.

  • Top-end machine performance from a table-top tester
  • Force 1/500 to 1/1
  • High speed return
  • 1 msec sampling
  • Touch load functionality
  • Capacity 1N to 10kN



agx AG-X

The AG-X Autograph testing machine, makes measurement a breeze while providing precise, high-speed results. It is ideal for a variety of industries, for QA/QC or R&D testing of plastics, metals, and other component parts.

  • Test force measurement precision of 1/1000 ±0.5%
  • Highly rigid, large-capacity load cells and testing jigs
  • 5kHZ sampling rate
  • 1 M pulse/second resolution
  • Up to 7 analog input channels
  • Increased linearity, as well as lateral and torsional rigidity
  • Capacity: 10N to 350kN



ezgraph EZ Graph

Engineered for precise, high-speed testing of precision parts, medical devices, & electronic components, Shimadzu's space-saving EZGraph enables precise measurements of various materials utilizing a wide range of test speeds.

  • High Speed data sampling: Selectable from 1.25msec (for 25 seconds) to 5msec intervals
  • Wide range of test speeds: 0.00005 to 1000 mm/min, and crosshead speed precision of ±0.1%.
  • Capacity: 1N to 10kN
ez test EZ Test Series

Applications vary but can include foods, pharmaceuticals, cosmetics, precision and electronic parts and education.

EZ-L

  • Load Capacity: 500N
  • Accuracy: Within +/-1% of indicated value( in the range1/1 to 1/250 of load cell rated capacity)
  • Crosshead Speed Range: 0.05mm/min. to 1000mm/min.

EZ-S

  • Load Capacity: 5kN
  • Accuracy: Within +/-1% of indicated value( in the range1/1 to 1/250 of load cell rated capacity)
  • Crosshead Speed Range: 0.05mm/min. to 1000mm/min.

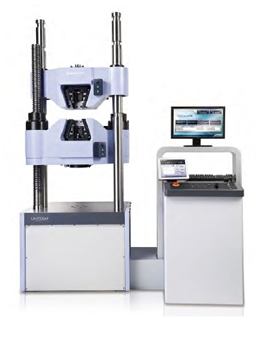

uhx UHX/FX Series

The UH-X/FX Series is a new hydraulic universal testing machine which realized ease-of-operation for beginners, high precision testing control, and energy-saving by environmentally friendly design.

UH-X

  • 200kN to 4000kN frame capacity
  • Large-sized LCD touch screen
  • High precision control with closed loop system
  • USB Memory

UH-FX

  • 300kN ro 4000kN
  • Large-sized LCD touch panel to simplify operations and enhance visibility
  • Various automatic control programs are standard functions
  • Force auto-zero and auto-calibration functions
  • Non-revolving screw rod to improve safety
  • USB Memory
Extensometers
trv TRViewX Non-Contact Video Extensometer

A new video extensometer for the Autograph series of testing and inspection machines, the TRView X achieves high precision (JIS Class 0.5 for use at room temperature; JIS Class 1 for use in chamber), making it compatible with a variety of materials, including metals, plastics, rubbers, and films. A complete interface to TRAPEZIUMX software makes it easy to operate.

  • Non-contact elongation measurement
  • Absolute accuracy ±1.5 µm, relative accuracy ±0.5 %
  • Images taken during testing can be played back afterwards. Playback can also be synchronized with the S-S curve. Specify a point on the graph using the mouse to display images for that region.



sie SIE-560/560S Automatic Extensometer

From polymers to ceramics, and from biomaterials to plastics, extensometers are used to determine crucial strength characteristics in modern materials. Incorporating Shimadzu's Digital Strain Processing Engine to improve the capturing and processing of sensor results, the SIE-560 Series employs magnetic-induction linear sensors, as well as strain-gauge sensors (560S only) to deliver results with better information and a higher level of repeatability.

  • High measurement accuracy
  • Strain-gauge sensor
  • Digital strain processing engine
  • Comprehensive automated operation

Software
trapx Trapezium X

Perform high-efficency, continuous testing thanks to fast data searches and one-touch method selection. Trapezium X's visual wizard guidance ensures trouble-free entry of method settings.
