S.A. Meier Company
Vertical COF System

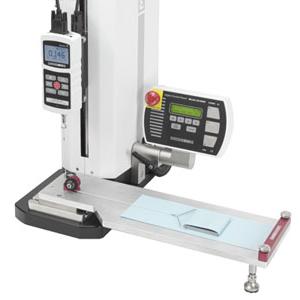

vertical cof SAMCOF 1
  • Adjustable speeds standard range 0.5 -13 in/min, extended range 0.5 – 45 in/min
  • 5 Selectable units: COF, LbF, KgF, gF, andN
  • Displays Static and Kinetic COFsimultaneously
  • Visual indication of test status, pass fail, and configurable alarms
  • User assignable passwords 200 gram sled
  • Removable fixture, test frame can be used for tension and compression testing.
  • Programmable averaging period and trigger
  • Removable gauge for easy calibration RS-232, USB and Mitutoyo output
  • +/- 0.1% gauge accuracy
  • Heated Platen option available
ft_1 FT-1
  • Adjustable speeds standard range 0.0004-80 in/min
  • Displays Static and Kinetic COF and one additional unit simultaneously
  • Can program up to 10 different tests in self- contained tester
  • Can be configured as a universal test machine with by using Nexygen software extending the number of tests programmed to almost unlimted
  • Visual indication of test status, pass fail, and configurable alarms
  • User assignable passwords
  • 200 gram sled
  • Programmable averaging period and trigger
  • Plug and play load cell
  • USB data output
  • +/- 0.5% of reading accuracy
  • Heated Platen option available
Horizontal COF System

controller
Controller
test plate normal
Shown with Test Plate in Normal Position
Test plate extended
Shoen with Test Plate in Extended Position

SAMCOF 2
  • Adjustable speeds standard range 0.2 -50 in/min
  • 5 Selectable units: COF, LbF, KgF, gF, and N
  • Displays Static and Kinetic COF simultaneously
  • Visual indication of test status, pass fail, and configurable alarms
  • User assignable passwords
  • 200 gram sled
  • Programmable averaging period and trigger
  • Gauge can be removed for calibration at another location
  • RS-232, USB and Mitutoyo output
  • +/- 0.1% gauge accuracy
  • Test plate can be oriented for longer travel
  • Heated platen option is available

Coefficient Of Friction Test Systems

S. A. Meier Co. of Milwaukee, Inc. offers and supports specifically configured Coefficient of Friction (COF) test systems. All systems are complete and display the end result in COF units. In addition we provide full calibration and repair service for these systems. All systems are designed to meet COF test methods ASTM D1894, TAPPI T549, and ISO 8294 and many others.
There are two distinct type of systems available, horizontal, where a 200 gram sled is pulled in line with a load sensing device and vertical, where the load sensing device is mounted vertically and the 200 gram sled is pulled horizontally through a turning block. Vertical systems tend to have a smaller foot print and are more versatile because the fixture can be removed and the stand used for other compression and tensile tests. Click HERE for a PDF pdf
